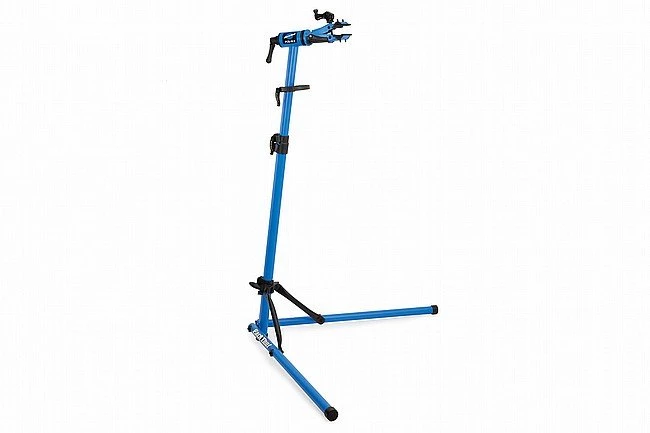

Park Tool PCS-10.3 Deluxe Home Mechanic Repair Stand

Full-Featured Bicycle Work Stand for the Home Mechanic

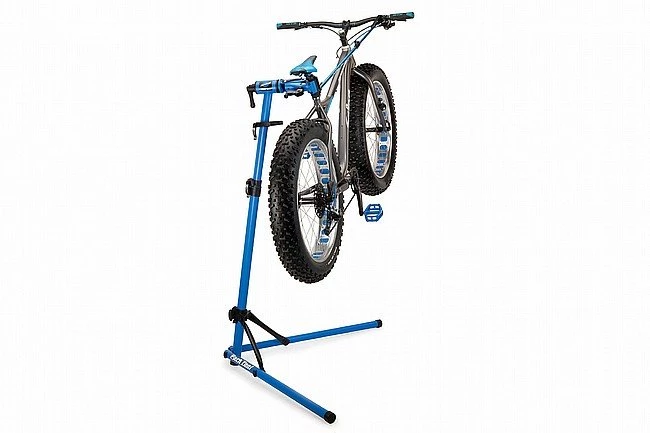

The stand’s all-steel construction with teardrop-shaped tubing ensures maximum rigidity and stability, with tubular support braces, a locking support yoke, and upgraded internals for extra dependability. The PCS-10.3 is able to hold up to 80 lbs. (36 kg), which allows for compatibility with virtually all two-wheeled pedal-driven bicycles, including fat bikes and most e-bikes.*

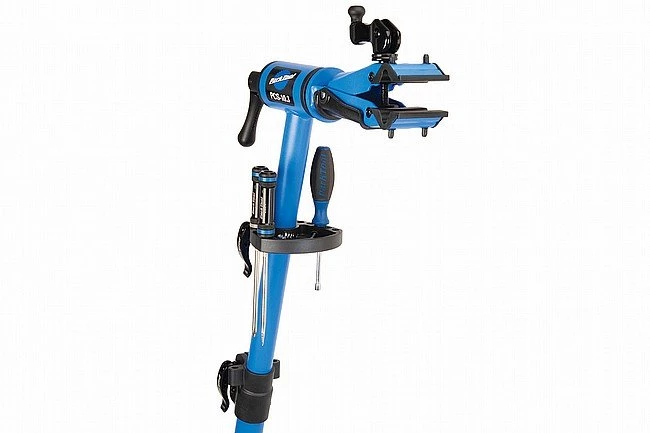

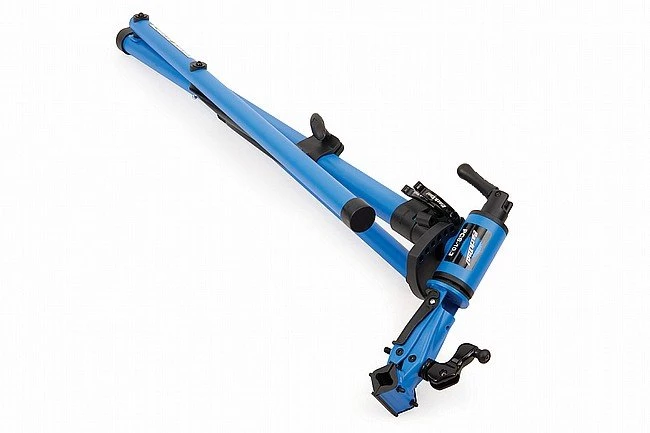

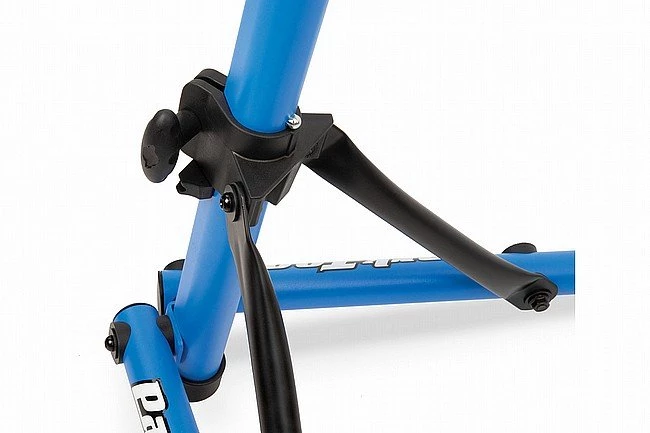

The PCS-10.3 features an integrated height-adjustable parts tray, as well as accessory ports for the Park Tool #106 Work Tray or PTH-1 Paper Towel Holder (both sold separately), so your tools and small parts are always within reach. Quickly folds down for storage and transport with a smooth-operating leg support system that pulls both legs up in one simple motion.

The main upgrade found on the PCS-10.3 (as opposed to the PCS-10.2) is the addition of a spring button that prevents the legs from folding once the stand is fully upright, even if the adjustment knob is not properly tightened. The clamp and jaw covers have also been revised to allow for more secure engagement on tubes as small as 7/8″, which would include most dropper posts. Several internal parts are also upgraded to be stronger and allow smoother operation.

The PCS-10.3 is the perfect way to upgrade your home shop – a stable way to hold nearly any bike off the ground for adjustments, cleaning, and repair

Features:

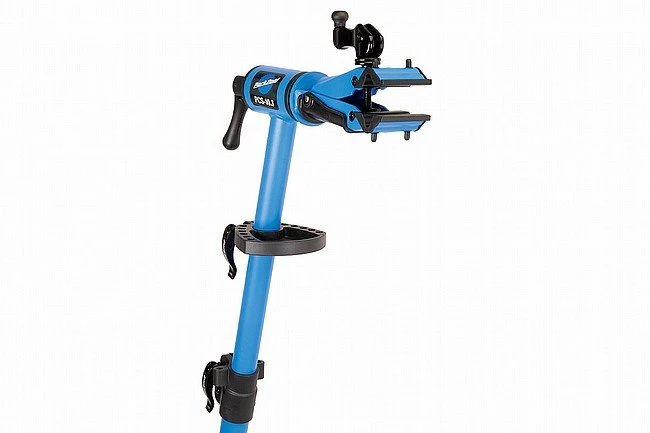

• Cam-actuated micro-adjustable clamp fits 7/8″ to 3″ (22 mm–76 mm) diameter tubes and seat posts of any shape and material, including aero posts and dropper posts
• Narrow clamping jaws (2.7″/70 mm) fit into tight areas or on short seat posts

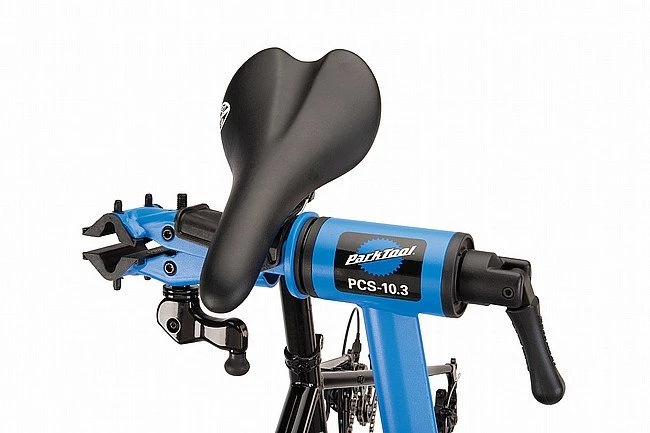

• Rubber saddle pad allows bikes to be hung by the saddle for quick adjustment or storage
• Durable, textured powder coat finish
• Integrated height-adjustable parts tray
• Height adjustment collar features accessory ports for compatibility with the #106 Work Tray or PTH-1 Paper Towel Holder (both sold separately)

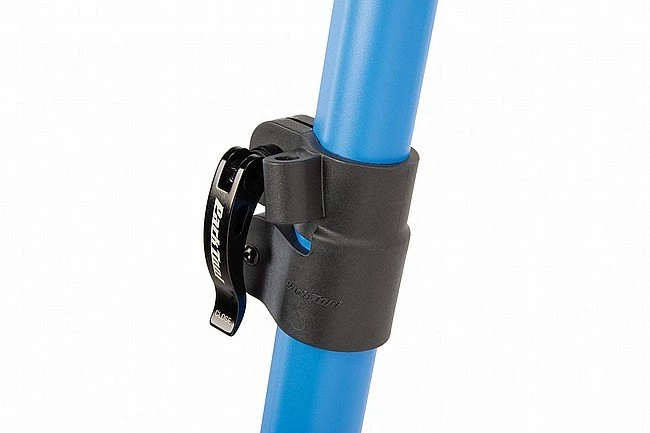

• Maximum weight capacity*: 80 lbs. (36 kg)Height adjustable from 39″ to 57″ (990 mm–1450 mm) using a convenient quick-release lever
• Base when open forms a triangle of 36″ x 36″ x 48″ (920 mm x 920 mm x 1210 mm)
• Folds down to 45″ x 14.5″ (1140 mm x 370 mm)
• Weight: 16 lbs. (7.2 kg)
• *NOTE: The maximum weight capacity of the PCS-10.3 assumes the weight is centered below the clamp and between the legs.

---

Specifications

Mfg PartNum: PCS-10.3

Tool Type: Floor Repair Stand
