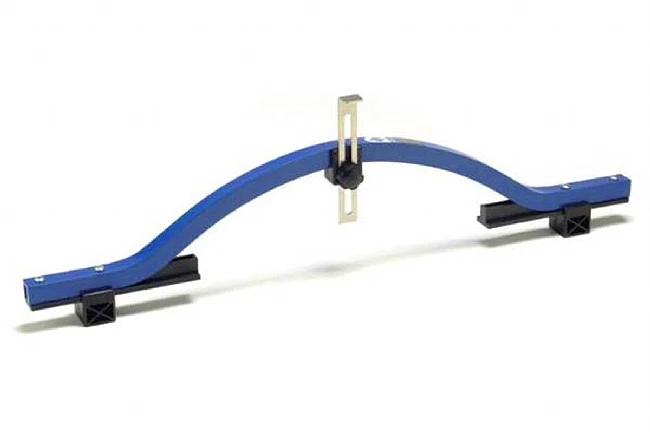

Park Tool WAG-4 Wheel Alignment Gauge

The Proper Dish

For a wheel to perform properly, it is important for the rim to be centered between the locknuts of the hub, or “dished.” To check this, and to make precision adjustments, the Park Tool WAG-4 Wheel Alignment Gauge (also called a “dishing tool”) is a must. An accurate and truly versatile wheel alignment gauge that belongs alongside every truing stand.

The Park Tool WAG-4 comparatively measures the distance from the rim to end of the hub locknut on each side of the wheel. One can then accurately dish the wheel so that the rim lies in the center of the hub. This is especially difficult to eyeball on rear wheels or disc wheels where the rim does not center between the hub flanges. Compatible with 16 Inch to 29 Inch wheels (ISO 305 to 630). The WAG-4 can be used with the tires mounted or removed.

Features:

• The WAG-4 allows easy checking of the dish on road, mountain, or BMX wheels from 16″ to 29″ (ETRTO or ISO rim sizing of 305-630)
• Works with any hub width
• Can be accurately used with the tire still on the wheel
• Made in the USA

---

The product weight specified is an approximate weight based on the manufacturer’s specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.

Specifications

Weight: 1000 grams

Mfg PartNum: WAG-4
